ERZ-LPF-0000-1000-1.5

Login to see priceGet a quote

LOW PASS FILTER

Description:

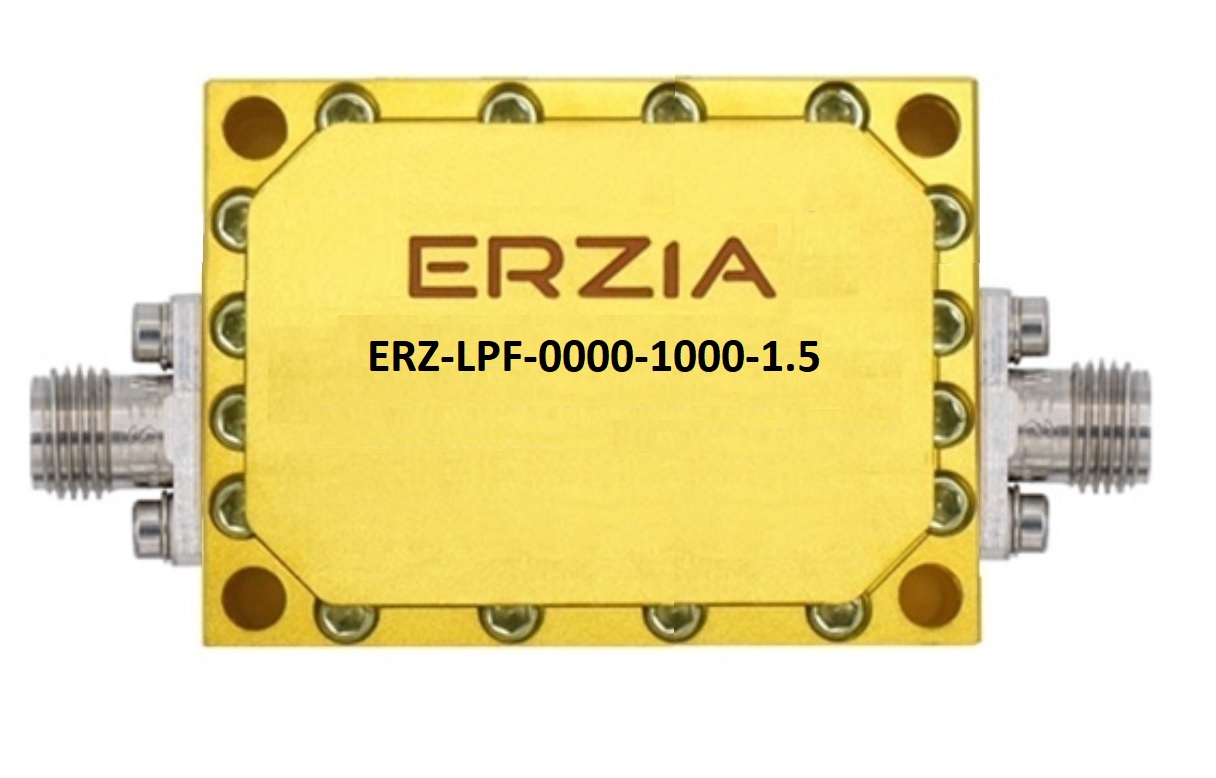

The ERZ-LPF-0000-1000-1.5 is a Suspended Substrate Stripline Low Pass filter integrated in a compact, rugged and connectorized module allowing easy integration in a wide range of final applications.

Download:
PDF icon ERZ-LPF-0000-1000-1.5.pdf
Key Features
Frequency Range (GHz):
0.00 to 10.00
Type:
LPF
Technology:
SS
Package Dimensions:
55x40x10 mm
Connectors:
SMA Female
Specification
Frequency Start (GHz):
0.00
Frequency Stop (GHz):
10.00
Insertion Loss (dB):
0.40
Return Loss (dB):
13.00
Minimum frequency for 30 dB out of band rejection (GHz):
0.00
Maximum frequency for 30 dB out of band rejection (GHz):
10.50
Minimum frequency for 60 dB out of band rejection (GHz):
0.00
Maximum frequency for 60 dB out of band rejection (GHz):
10.80
Max. RF input power (dBm):
40
Temperature (operation) (°C):
-45 to 85
Temperature (storage) (°C):
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
