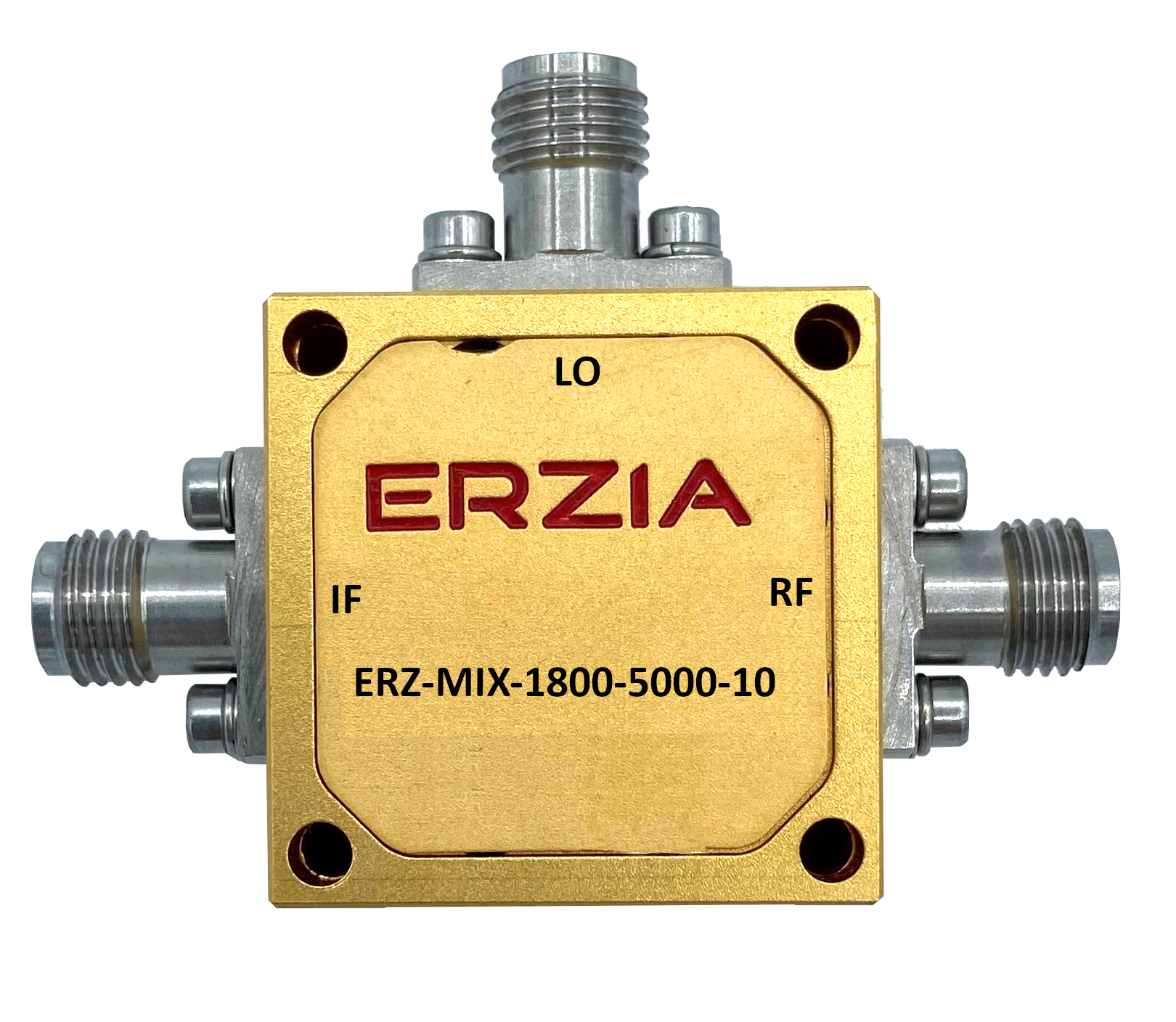

ERZ-MIX-1800-5000-10

Login to see priceGet a quote

Description:

The ERZ-MIX-1800-5000-10 is an double balanced mixer covering RF/LO frequencies from 18 to 50 GHz and IF frequencies from DC to 20 GHz.The compact size and modularity makes it ideal for a wide range of applications.

Download:
PDF icon ERZ-MIX-1800-5000-10.pdf
Key Features
Type:
Dual Balanced
RF/LO Frequency (GHz):
18 - 50
IF Frequency (GHz):
0 - 20
LO Power (dBm):
16
Conversion Loss (dB):
10
Connectors:
SMA Female / 2.92 mm Female
Specification
RF/LO Frequency (GHz):
18 - 50
IF Frequency (GHz):
0 - 20
Conversion Loss (dB):
10
LO Power (dBm) :
16
LO to IF Isolation (dB):
-35
RF to IF Isolation (dB):
-35
Input IP3 :
16
Max. RF input power (dBm):
21
Temperature (operation) (°C):
-55 to 125
Temperature (storage) (°C):
-45 to 85
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
