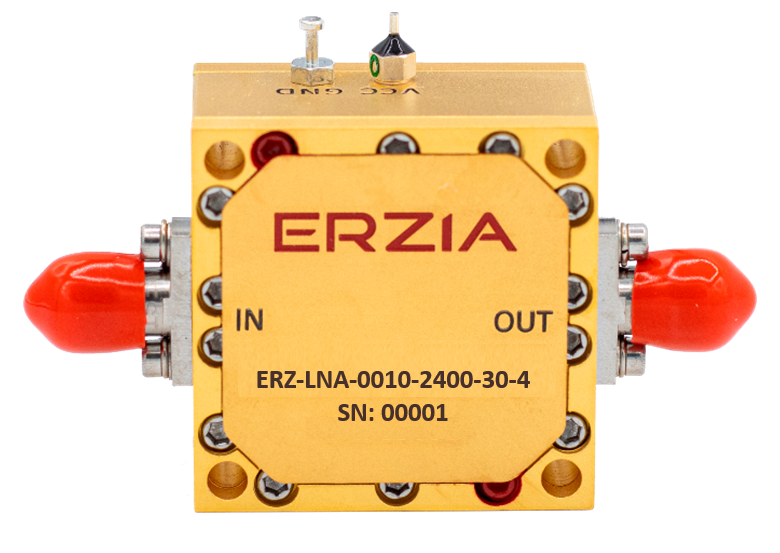

ERZ-LNA-0010-2400-30-4

Wideband Low Noise Amplifier

Description:

The ERZ-LNA-0010-2400-30-4 is a Low Noise Amplifier providing a gain of 30 dB with a noise figure of 4.5 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
0.10 to 24.0
Output Power (dBm):
12
Small Signal Gain (dB):
30
Noise Figure (dB):
4.5
Bias:
12±3 VDC
Package Dimensions:
16.3x17.8x7.3 mm
Connectors:
2.92 mm Female
Frequency Start (GHz)
0.10
Frequency Stop (GHz)
24.0
Output Power (dBm)
12
Gain (dB)
30
Gain flatness (dB)
±4
Noise Figure (dB)
4.5
VSWR IN
1.5:1
VSWR OUT
1.5:1
Power supply (V)
12±3
Current (mA)
83
Power consumption (W)
1
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
22
Temperature (operation) (°C)
-45 to +85
Temperature (storage) (°C)
-55 to +125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

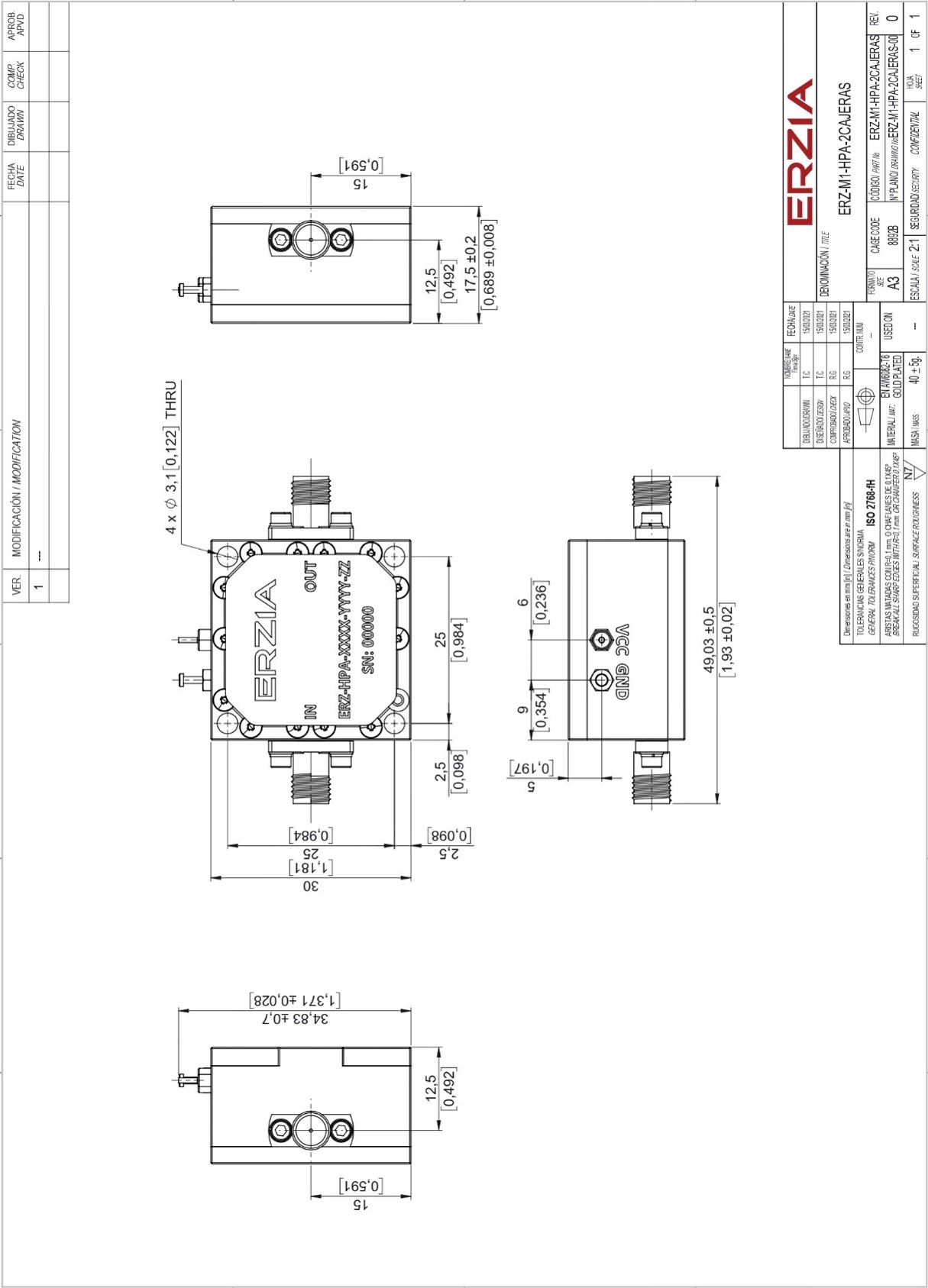

Outline Drawing:
Ordering Information:
