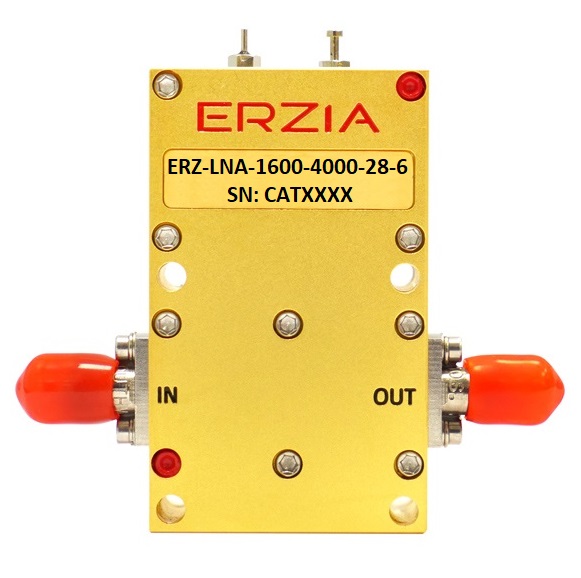

ERZ-LNA-1600-4000-28-6

Wideband Low Noise Amplifier

Description:

The ERZ-LNA-1600-4000-28-6 is a Low Noise Amplifier providing a gain of 33 dB with a noise figure of 4.5 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
16.00 to 40.0
Output Power (dBm):
24
Small Signal Gain (dB):
33
Noise Figure (dB):
4.5
Bias:
15 ±2 VDC
Package Dimensions:
30x51.4x12.5 mm
Connectors:
2.92 mm Female
Frequency Start (GHz)
16.00
Frequency Stop (GHz)
40.0
Output Power (dBm)
24
Gain (dB)
33
Gain flatness (dB)
±2.5
Noise Figure (dB)
4.5
VSWR IN
1.5:1
VSWR OUT
1.5:1
Power supply (V)
15±2
Current (mA)
300
Power consumption (W)
4.5
Max. Input DC (no damage) (V)
17
Max. RF input power (dBm)
23
Temperature (operation) (°C)
-40 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
