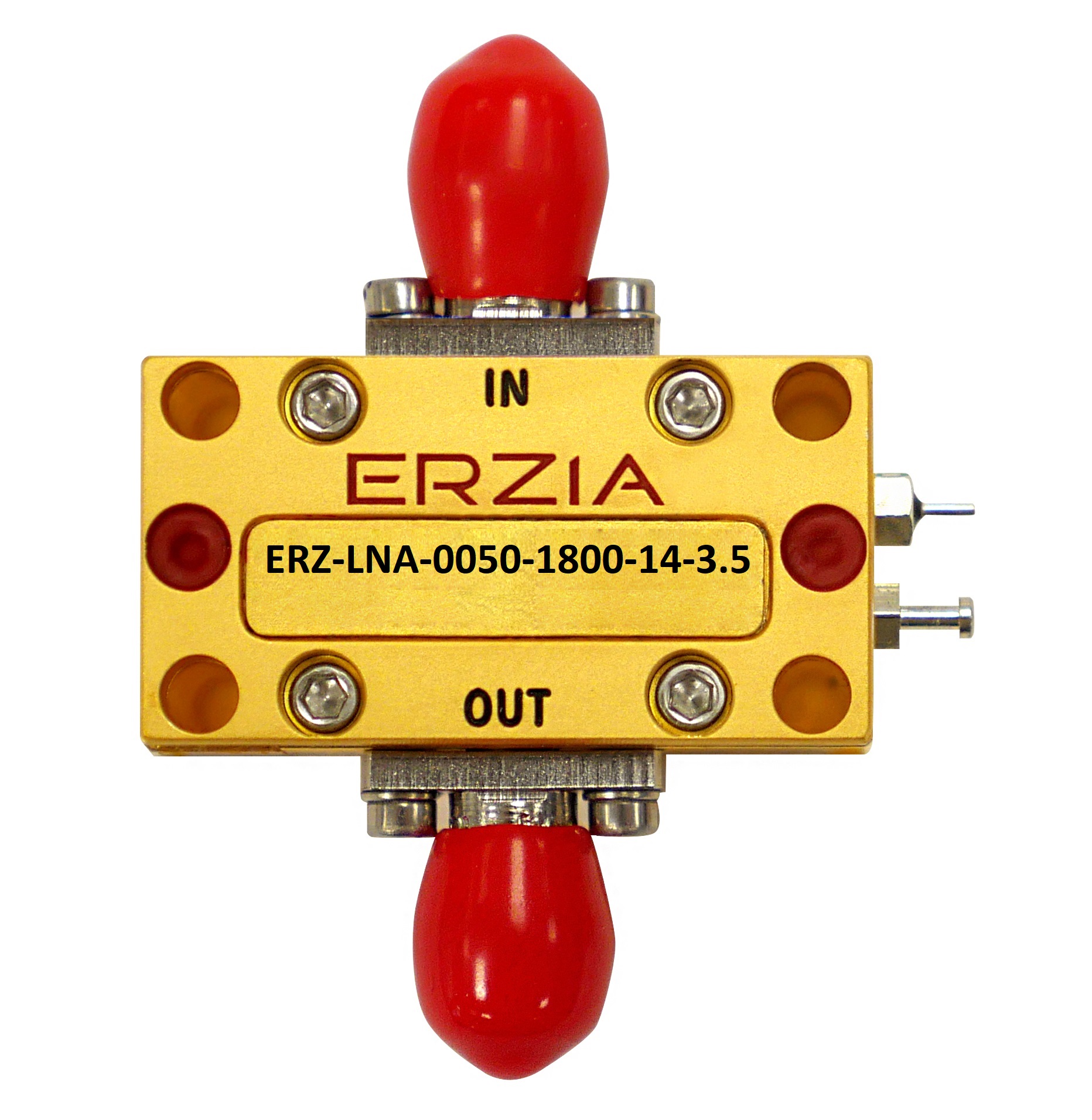

ERZ-LNA-0050-1800-14-3.5

Wideband Low Noise Amplifier

Description:

The ERZ-LNA-0050-1800-14-3.5 is a Low Noise Amplifier providing a gain of 15 dB with a noise figure of 3 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
0.50 to 18.0
Output Power (dBm):
22
Small Signal Gain (dB):
15
Noise Figure (dB):
3
Bias:
12 ±3 VDC
Package Dimensions:
16x30x17,5 mm
Connectors:
SMA Female
Frequency Start (GHz)
0.50
Frequency Stop (GHz)
18.0
Output Power (dBm)
22
Gain (dB)
15
Gain flatness (dB)
±2
Noise Figure (dB)
3
VSWR IN
1.5:1
VSWR OUT
1.5:1
Power supply (V)
12 ±3
Current (mA)
166
Power consumption (W)
2
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
20
Temperature (operation) (°C)
-45 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
