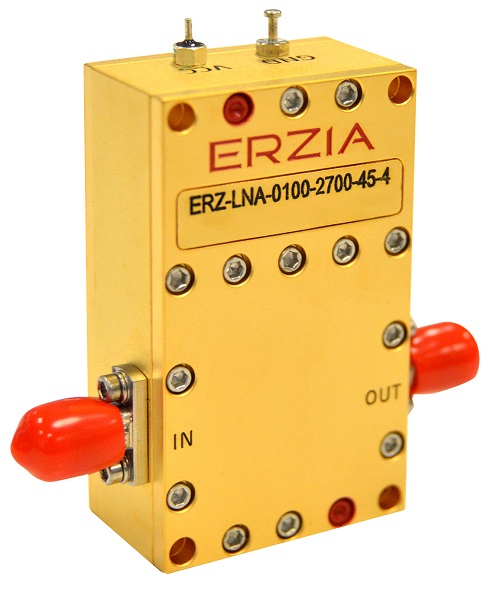

ERZ-LNA-0100-2700-45-4

Wideband Low Noise Amplifier

Description:

The ERZ-LNA-0100-2700-45-4 is a Low Noise Amplifier providing a gain of 45 dB with a noise figure of 4 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
1.00 to 27.0
Output Power (dBm):
20
Small Signal Gain (dB):
45
Noise Figure (dB):
4
Bias:
12 VDC
Package Dimensions:
30x51.4x17.5 mm
Connectors:
2.92 mm Female
Frequency Start (GHz)
1.00
Frequency Stop (GHz)
27.0
Output Power (dBm)
20
Gain (dB)
45
Gain flatness (dB)
±3
Noise Figure (dB)
4
VSWR IN
1.5:1
VSWR OUT
1.5:1
Power supply (V)
12 ±3
Current (mA)
416
Power consumption (W)
5
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
-10
Temperature (operation) (°C)
-45 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
