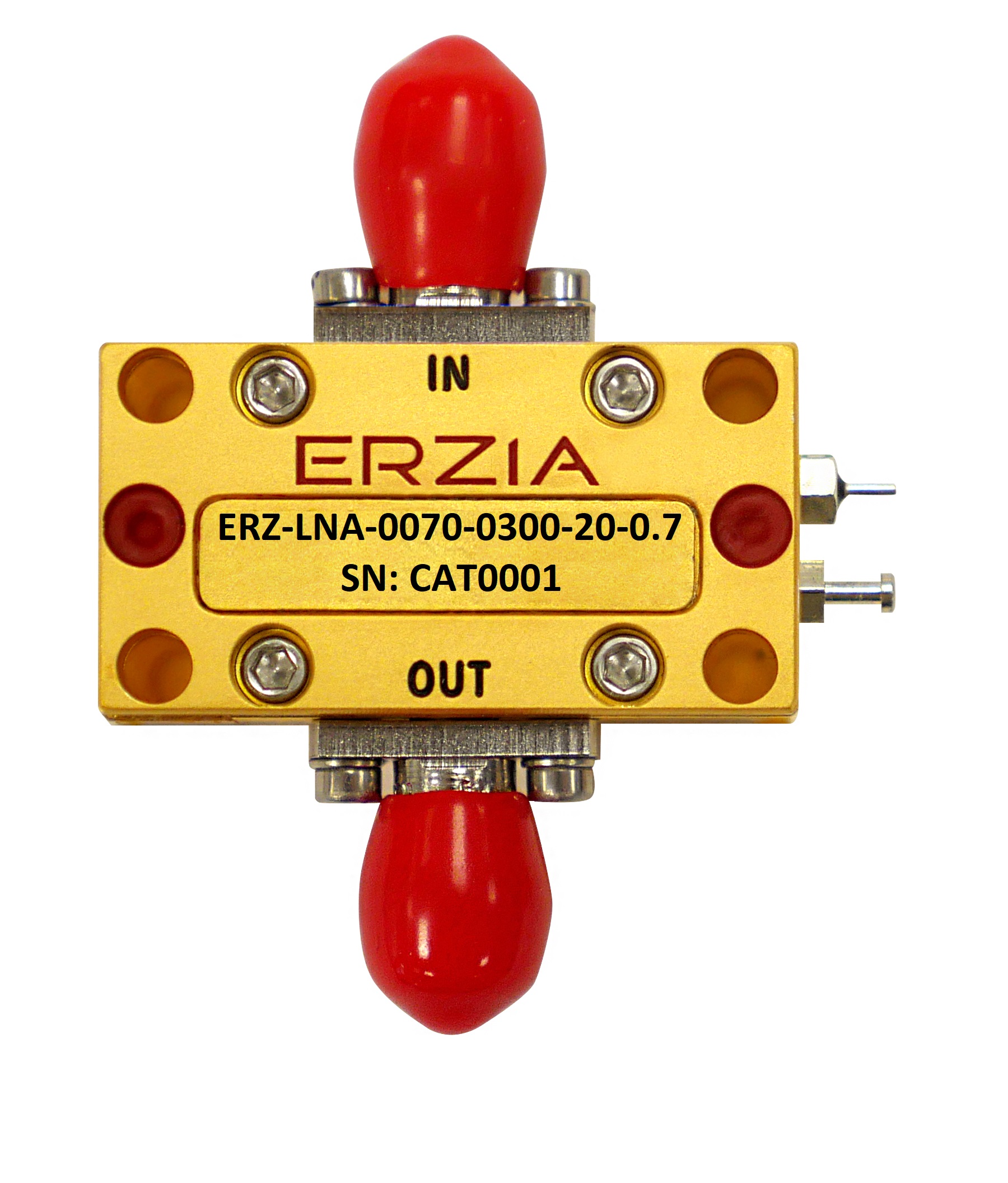

ERZ-LNA-0070-0300-20-0.7

L Band Low Noise Amplifier

Description:

The ERZ-LNA-0070-0300-20-0.7 is a Low Noise Amplifier providing a gain grater than 20 dB with a noise figure lower than 1 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
0.70 to 3.0
Output Power (dBm):
21
Small Signal Gain (dB):
20
Noise Figure (dB):
0.7
Bias:
Power supply: 12±3 V
Package Dimensions:
16x30x17.5
Connectors:
SMA Female
Frequency Start (GHz)
0.70
Frequency Stop (GHz)
3.0
Output Power (dBm)
21
Gain (dB)
20
Gain flatness (dB)
±1.5
Noise Figure (dB)
0.7
VSWR IN
1.8:1
VSWR OUT
1.2:1
Power supply (V)
12±3
Current (mA)
80
Power consumption (W)
0.5
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
30
Temperature (operation) (°C)
-45 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
