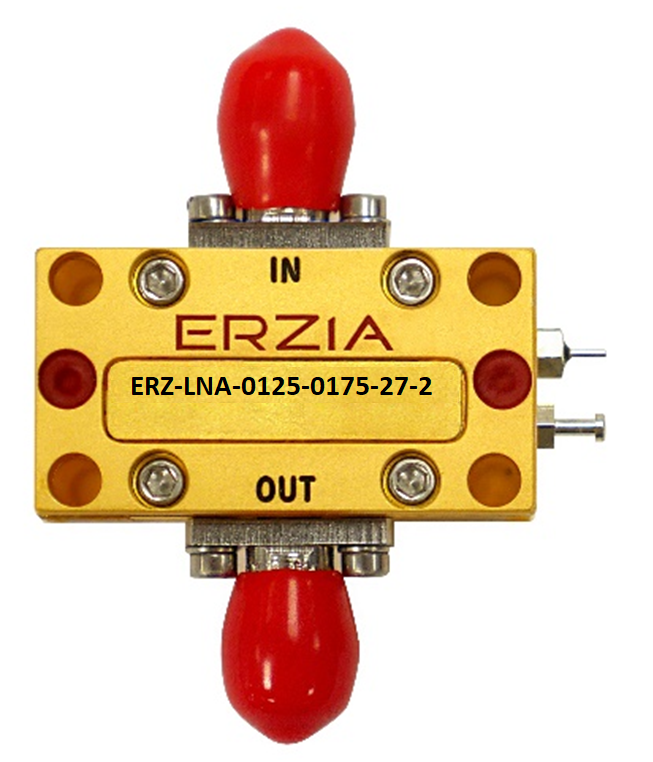

ERZ-LNA-0125-0175-27-2

L Band Low Noise Amplifier

Description:

The ERZ-LNA-0125-0175-27-2 is a Low Noise Amplifier that provides a Noise Figure below2 dB with a Gain of 27 dB

Key Features
Frequency Range (GHz):
1.25 to 1.8
Output Power (dBm):
15
Small Signal Gain (dB):
27
Noise Figure (dB):
2
Bias:
Power supply: 12 V
Package Dimensions:
16x30x17,5 mm
Connectors:
SMA Female
Frequency Start (GHz)
1.25
Frequency Stop (GHz)
1.8
Output Power (dBm)
15
Gain (dB)
27
Gain flatness (dB)
±0,5
Noise Figure (dB)
1.8
VSWR IN
1.5:1
VSWR OUT
1.5:1
Power supply (V)
12 ±3
Current (mA)
60
Power consumption (W)
0.7
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
+20
Temperature (operation) (°C)
-45 to 75
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
