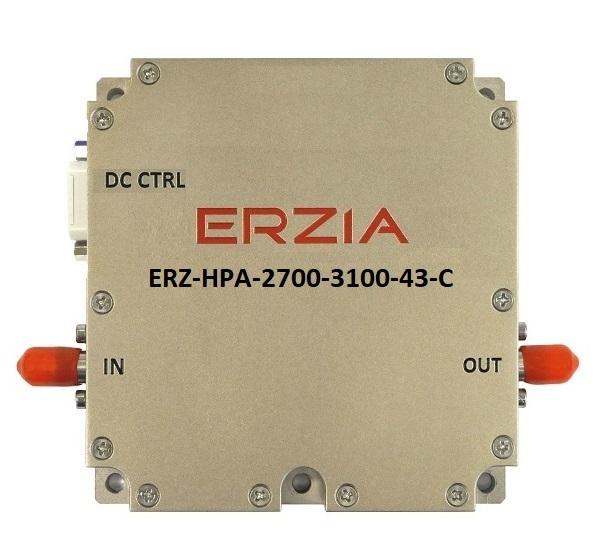

ERZ-HPA-2700-3100-43-C

Ka Band Power Amplifier

Description:

The ERZ-HPA-2700-3100-43-C is a High Power Amplifier based in GaN, providing a gain of 51 dB with a Psat of 42 dBm. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
27.50 to 31.0
Output Power (dBm):
42
Small Signal Gain (dB):
51
Bias:
28 ±4 VDC
Package Dimensions:
100 x 100 x 21
Connectors:
2.92 mm (F)
Frequency Start (GHz)
27.50
Frequency Stop (GHz)
31.0
Output Power (dBm)
42
Gain (dB)
51
Gain flatness (dB)
±4
VSWR IN
1.8:1
VSWR OUT
1.8:1
Power supply (V)
28 ±4
Current (mA)
3200
Power consumption (W)
115
Max. Input DC (no damage) (V)
32
Max. RF input power (dBm)
10
Temperature (operation) (°C)
-40 to 85ºC
Temperature (storage) (°C)
-55 to 125ºC
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
