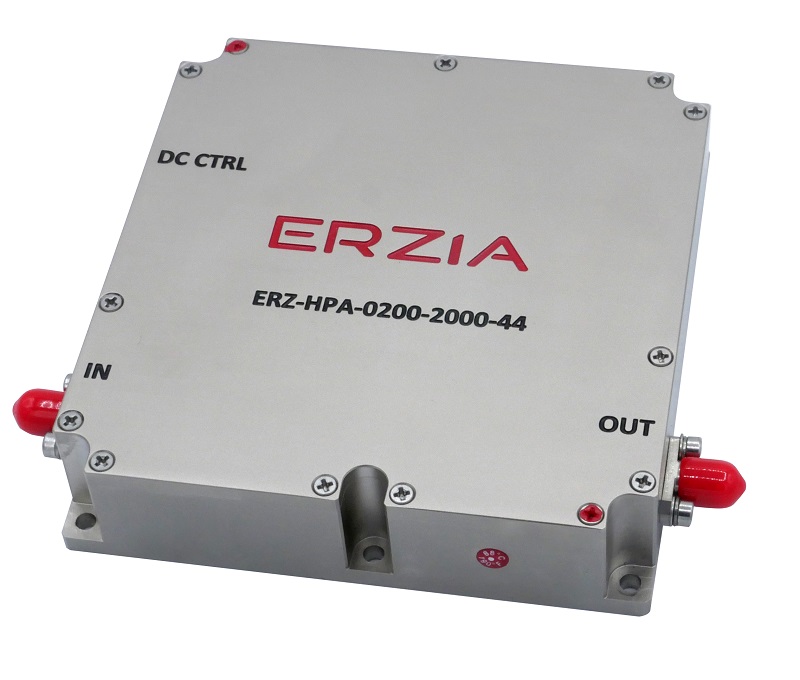

ERZ-HPA-0200-2000-44

Wideband Power Amplifier

Description:

The ERZ-HPA-0200-2000-44 is a Wideband amplifier providing an output power of 42 dBm and a gain of 51 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
2.00 to 20.0
Output Power (dBm):
42
Small Signal Gain (dB):
51
Bias:
28 ±4
Package Dimensions:
100x100x21 mm
Connectors:
SMA Female
Frequency Start (GHz)
2.00
Frequency Stop (GHz)
20.0
Output Power (dBm)
42
Gain (dB)
51
Gain flatness (dB)
±1.5
VSWR IN
1.8:1
VSWR OUT
1.8:1
Power supply (V)
28 ±4
Current (mA)
4285
Power consumption (W)
120
Max. Input DC (no damage) (V)
32
Max. RF input power (dBm)
10
Temperature (operation) (°C)
-40 to 70
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
