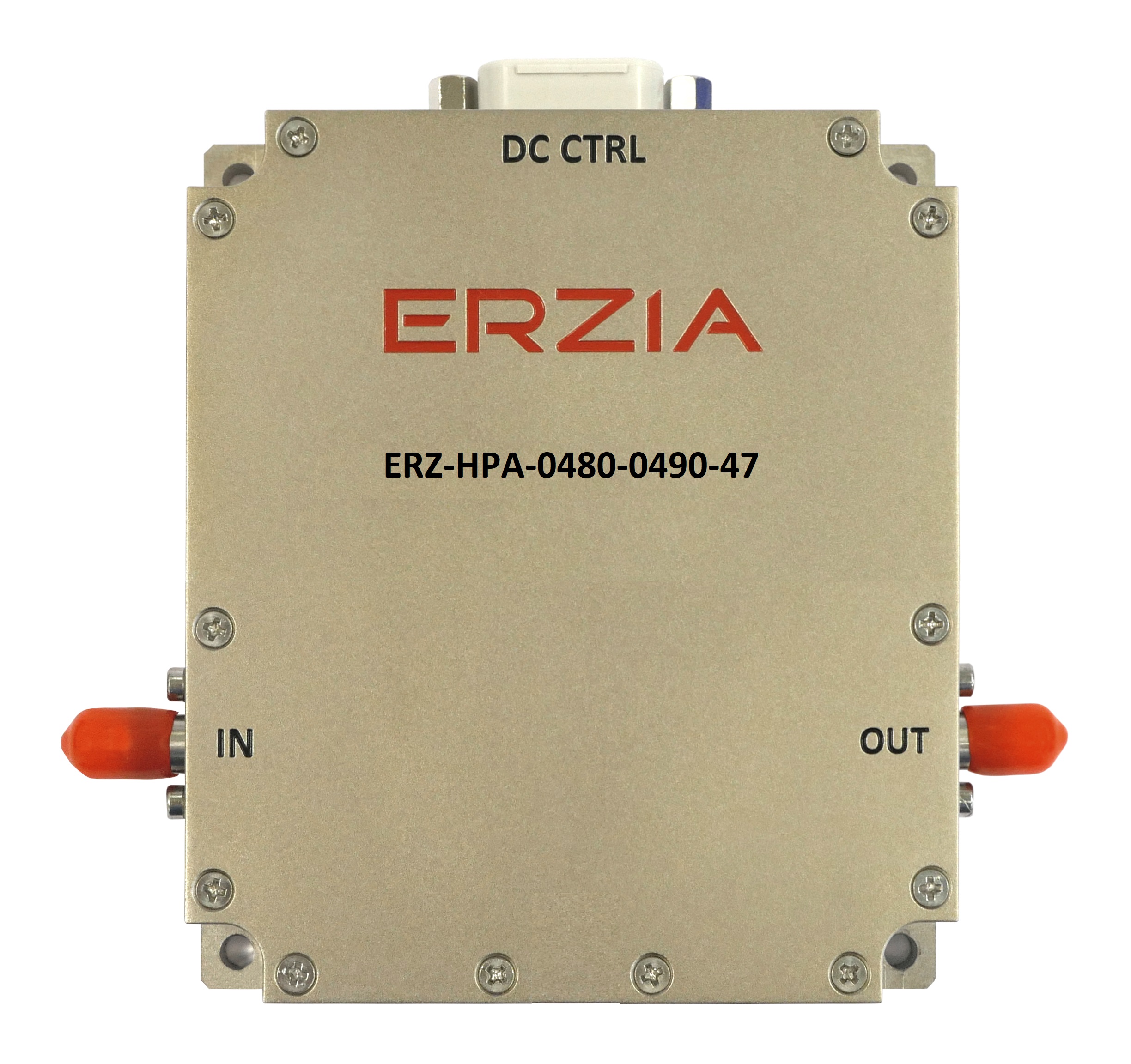

ERZ-HPA-0480-0490-47

C Band Power Amplifier

Description:

The ERZ-HPA-0480-0490-47 is a High Power Amplifier providing an output power of 47 dBm and a gain of 27 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
4.80 to 4.9
Output Power (dBm):
47
Small Signal Gain (dB):
27
Noise Figure (dB):
8
Bias:
24 ±2 VDC
Package Dimensions:
75x85x22 mm (LxWxH)
Connectors:
SMA Female
Frequency Start (GHz)
4.80
Frequency Stop (GHz)
4.9
Output Power (dBm)
47
Gain (dB)
27
Gain flatness (dB)
±0.1
Noise Figure (dB)
8
VSWR IN
1.1:1
VSWR OUT
1.6:1
Power supply (V)
24 ±2
Current (mA)
6250
Power consumption (W)
150
Max. Input DC (no damage) (V)
28
Max. RF input power (dBm)
32
Temperature (operation) (°C)
-40 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

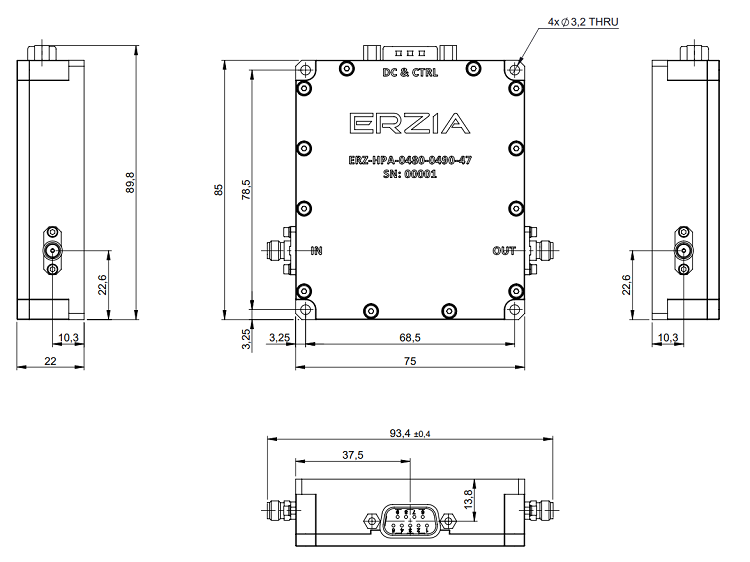

Outline Drawing:
Ordering Information:
