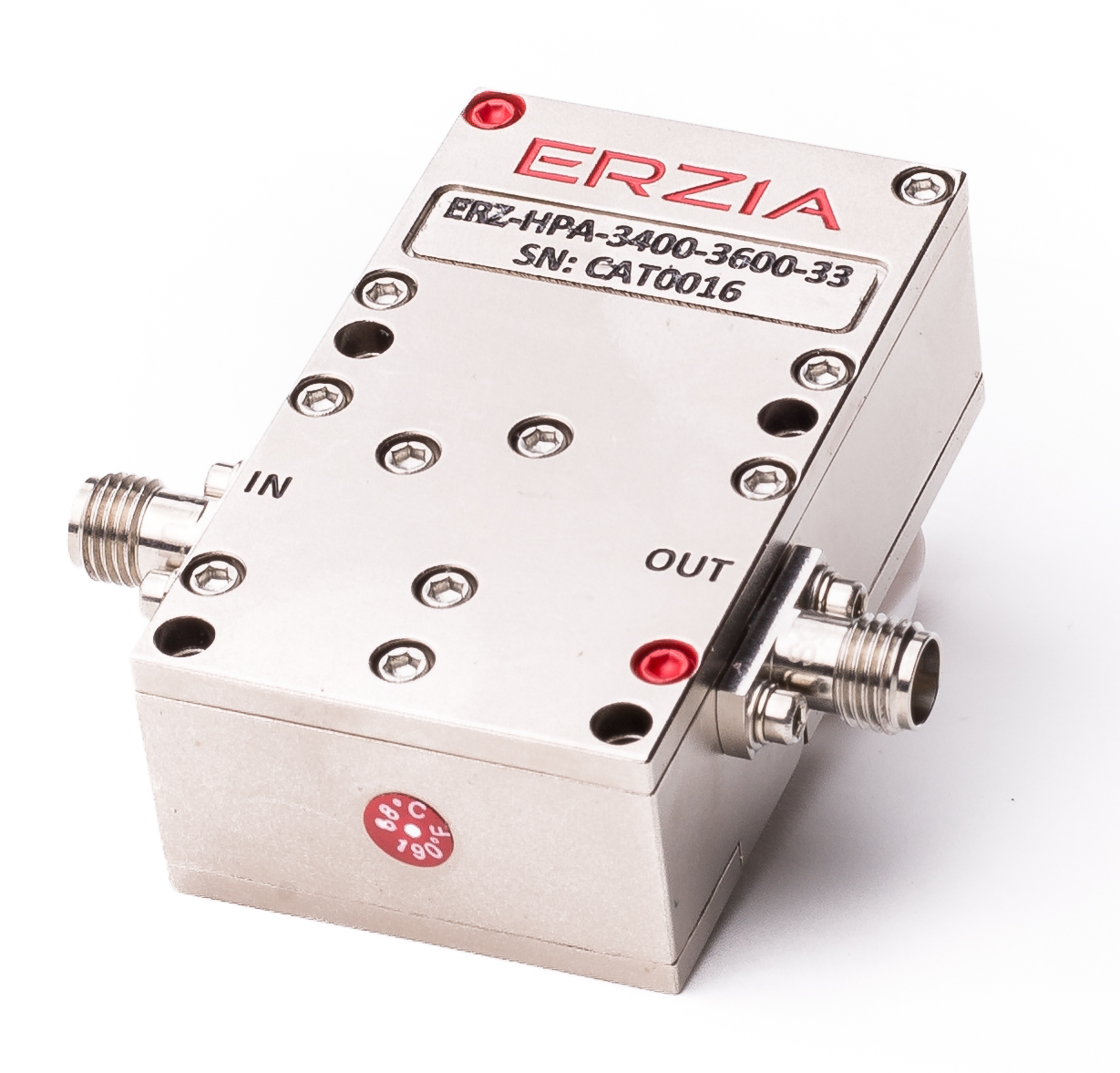

ERZ-HPA-3400-3600-33

Ka Band Power Amplifier

Description:

The ERZ-HPA-3400-3600-33 is a High Power Amplifier providing an output power of 32 dBm and a gain of 38 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
34.00 to 36.0
Output Power (dBm):
32
Small Signal Gain (dB):
38
Bias:
12 ±2 VDC
Package Dimensions:
30x50x17,5 mm
Connectors:
2.92mm Female
Frequency Start (GHz)
34.00
Frequency Stop (GHz)
36.0
Output Power (dBm)
32
Gain (dB)
38
Gain flatness (dB)
±1
Noise Figure (dB)
-
VSWR IN
1.3:1
VSWR OUT
2.1:1
Power supply (V)
12 ±2
Current (mA)
1333
Power consumption (W)
16
Max. Input DC (no damage) (V)
15
Max. RF input power (dBm)
5
Temperature (operation) (°C)
-40 to 80
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
