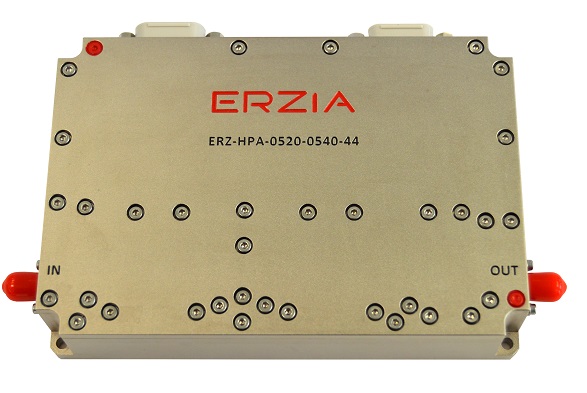

ERZ-HPA-0520-0540-44

C Band Power Amplifier

Description:

The ERZ-HPA-0520-0540-44 is a High Power Amplifier providing an output power of 46 dBm and a gain of 52 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
5.20 to 5.4
Output Power (dBm):
46
Small Signal Gain (dB):
52
Noise Figure (dB):
9
Bias:
24 V
Package Dimensions:
125x85x25 mm
Connectors:
SMA Female
Frequency Start (GHz)
5.20
Frequency Stop (GHz)
5.4
Output Power (dBm)
46
Gain (dB)
52
Gain flatness (dB)
±1.5
Noise Figure (dB)
-
VSWR IN
1.8:1
VSWR OUT
1.1:1
Power supply (V)
24±4
Current (mA)
6875
Power consumption (W)
165
Max. Input DC (no damage) (V)
28
Max. RF input power (dBm)
5
Temperature (operation) (°C)
-40 to 70
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

Outline Drawing:
Ordering Information:
