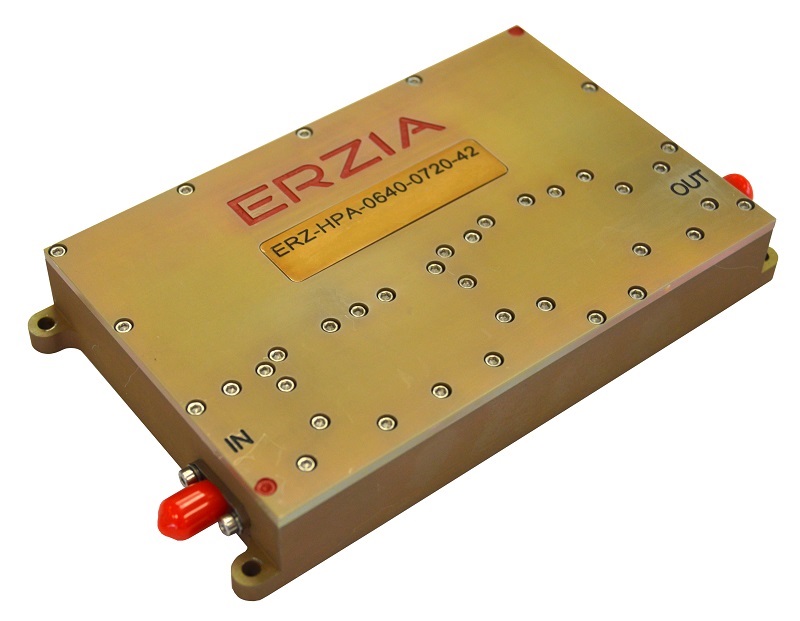

ERZ-HPA-0640-0720-42

C Band Power Amplifier

Description:

The ERZ-HPA-0640-0720-42 is a High Power Amplifier providing an output power of 42 dBm and a gain of 48 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
6.40 to 7.2
Output Power (dBm):
43
Small Signal Gain (dB):
48
Noise Figure (dB):
5
Bias:
Power Supply: 15V
Package Dimensions:
112x75x20 mm
Connectors:
SMA Female
Frequency Start (GHz)
6.40
Frequency Stop (GHz)
7.2
Output Power (dBm)
43
Gain (dB)
48
Gain flatness (dB)
±1.5
Noise Figure (dB)
5
VSWR IN
1.3:1
VSWR OUT
1.1:1
Power supply (V)
15±3
Current (mA)
6333
Power consumption (W)
95
Max. Input DC (no damage) (V)
18
Max. RF input power (dBm)
0
Temperature (operation) (°C)
-35 to 75
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

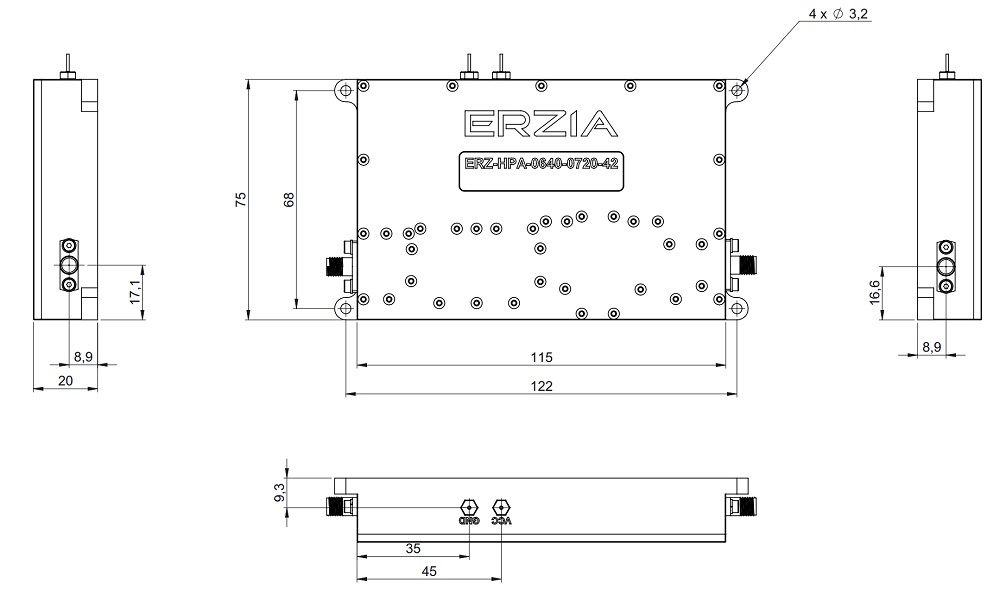

Outline Drawing:
Ordering Information:
