Ku Band Power Amplifier
Description:

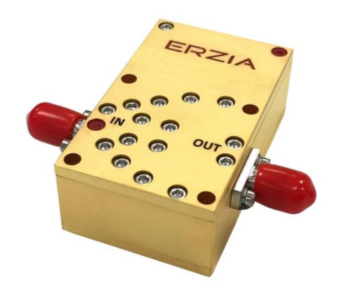

The ERZ-HPA-1200-1900-29 is a Ku Band Amplifier providing up to 29 dBm and a gain of 27 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 12.00
|
|---|---|
| Frequency Stop (GHz) | 19.0
|
| Output Power (dBm) | 29
|
| Gain (dB) | 27
|
| Gain flatness (dB) | ±1.5
|
| Noise Figure (dB) | 4
|
| VSWR IN | 2.0:1
|
| VSWR OUT | 2.0:1
|
| Power supply (V) | 12±3
|
| Current (mA) | 500
|
| Power consumption (W) | 6
|
| Max. Input DC (no damage) (V) | 15
|
| Max. RF input power (dBm) | 22
|
| Temperature (operation) (°C) | -35 to 70
|
| Temperature (storage) (°C) | -55 to 125
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

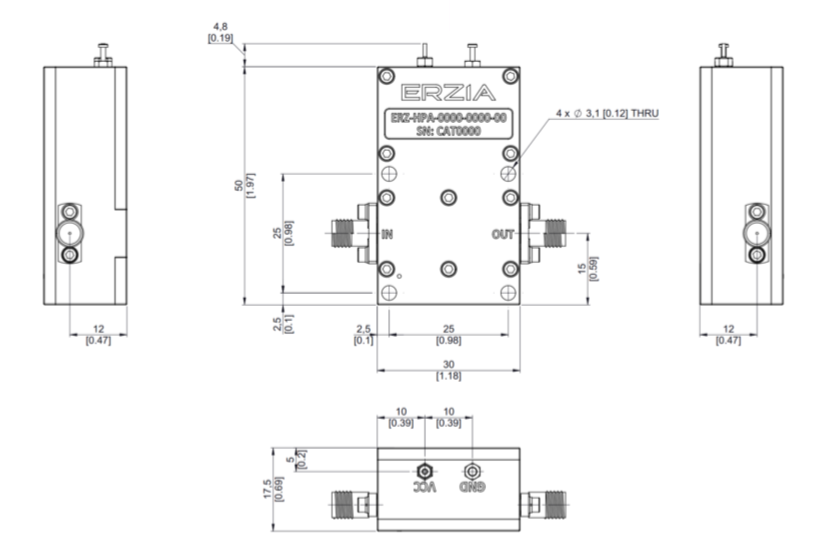

Outline Drawing:
Ordering Information:
