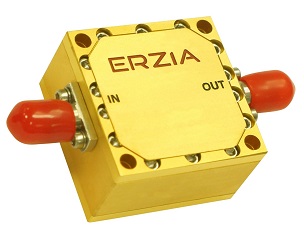

ERZ-HPA-1700-4300-22-E

Wideband Power Amplifier

Description:

The ERZ-HPA-1700-4300-22-E is a Wideband Amplifier providing up to 22 dBm and a gain of 45 dB. The compact size and modularity makes it ideal for a wide range of applications

Key Features
Frequency Range (GHz):
17.00 to 43.0
Output Power (dBm):
22
Small Signal Gain (dB):
45
Bias:
Power supply: +12 ±4 V, DC Current: 250 mA
Package Dimensions:
30x30x17.5 mm
Connectors:
2.4 mm Female
Frequency Start (GHz)
17.00
Frequency Stop (GHz)
43.0
Output Power (dBm)
22
Gain (dB)
45
Gain flatness (dB)
±8
Noise Figure (dB)
-
VSWR IN
1.7:1
VSWR OUT
2.2:1
Power supply (V)
12 ±4
Current (mA)
250
Power consumption (W)
3
Max. Input DC (no damage) (V)
16
Max. RF input power (dBm)
-5
Temperature (operation) (°C)
-35 to 70
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

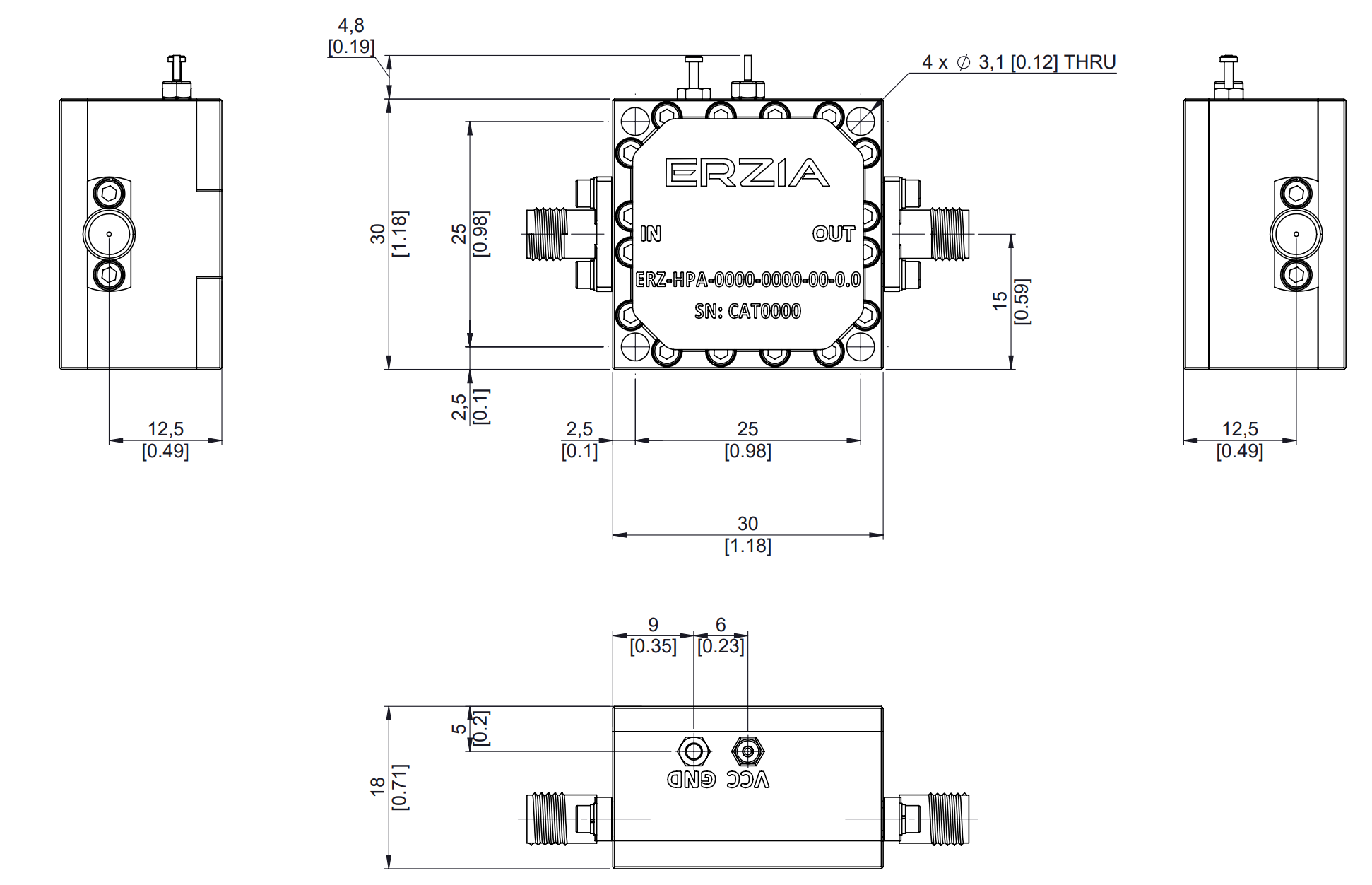

Outline Drawing:
Ordering Information:
