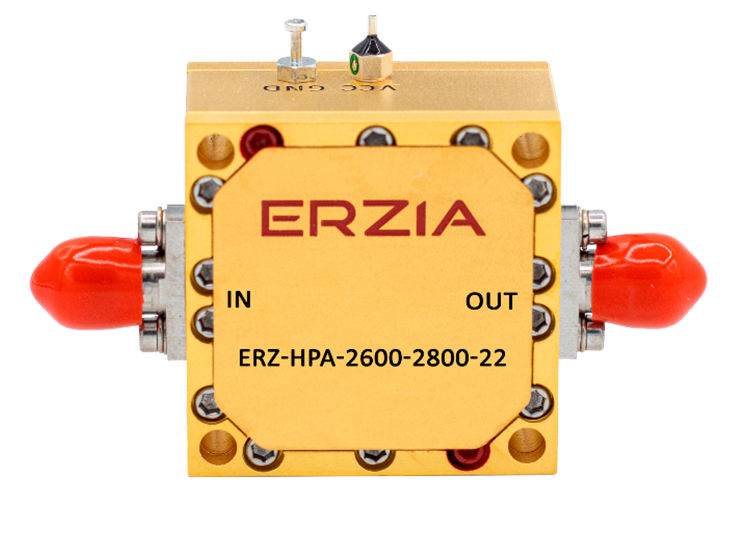

ERZ-HPA-2600-2800-22

Ka Band Power Amplifier

Description:

The ERZ-HPA-2600-2800-22 is a Ka Band Amplifier providing up to 22 dBm at saturation and a gain of 19 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
26.00 to 28.0
Output Power (dBm):
22
Small Signal Gain (dB):
19
Bias:
Power supply: 10 ±2 V
Package Dimensions:
30x30x17,5 mm
Connectors:
2.92 mm Female
Frequency Start (GHz)
26.00
Frequency Stop (GHz)
28.0
Output Power (dBm)
22
Gain (dB)
19
Gain flatness (dB)
±1
Noise Figure (dB)
-
VSWR IN
1.5:1
VSWR OUT
1.3:1
Power supply (V)
10 ±2
Current (mA)
224
Power consumption (W)
1.8
Max. Input DC (no damage) (V)
12
Max. RF input power (dBm)
20
Temperature (operation) (°C)
-40 to 75
Temperature (storage) (°C)
-55 to 125
