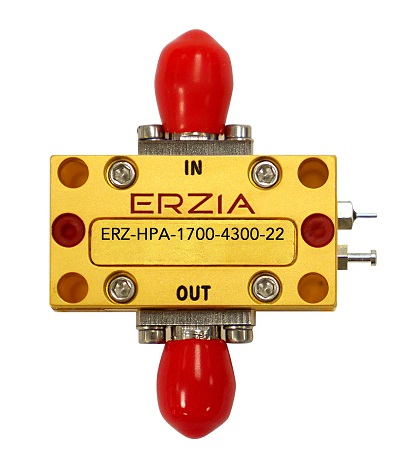

ERZ-HPA-1700-4300-22

Wideband Power Amplifier

Description:

The ERZ-HPA-1700-4300-22 is a Wideband Amplifier providing up to 22 dBm and a gain of 23 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
17.00 to 43.0
Output Power (dBm):
22
Small Signal Gain (dB):
23
Bias:
Power supply: +12 ±1 V, DC Current: 275 mA
Package Dimensions:
16x30x17,5 mm
Connectors:
2.4 mm Female
Frequency Start (GHz)
17.00
Frequency Stop (GHz)
43.0
Output Power (dBm)
22
Gain (dB)
23
Gain flatness (dB)
±4
Noise Figure (dB)
-
VSWR IN
1.5:1
VSWR OUT
2.0:1
Power supply (V)
12 ±1
Current (mA)
275
Power consumption (W)
3.3
Max. Input DC (no damage) (V)
13
Max. RF input power (dBm)
10
Temperature (operation) (°C)
-45 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

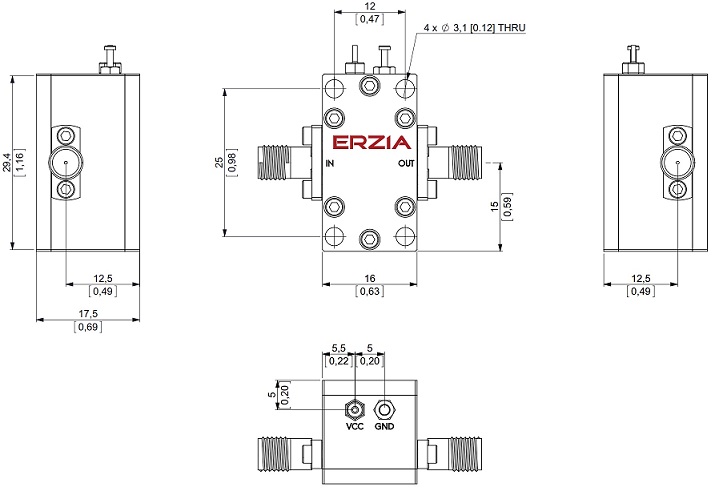

Outline Drawing:
Ordering Information:
