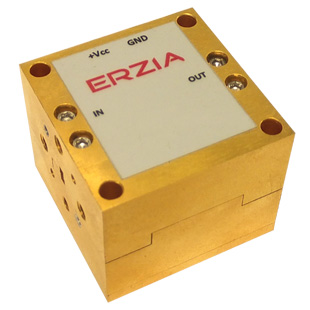

ERZ-HPA-5000-6600-19

V Band Power Amplifier

Description:

The ERZ-HPA-5000-6600-19 is a V Band Amplifier providing an ouput power of 16 dBm and a gain of 22 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
50.00 to 66.0
Output Power (dBm):
16
Small Signal Gain (dB):
22
Bias:
Power supply: +12 ±4 V, DC Current: 100 mA
Package Dimensions:
30x30x22,5 mm
Connectors:
WR15
Frequency Start (GHz)
50.00
Frequency Stop (GHz)
66.0
Output Power (dBm)
16
Gain (dB)
22
Gain flatness (dB)
±4
Noise Figure (dB)
-
VSWR IN
1.8:1
VSWR OUT
1.8:1
Power supply (V)
12 ±4
Current (mA)
100
Power consumption (W)
1.2
Max. Input DC (no damage) (V)
16
Max. RF input power (dBm)
5
Temperature (operation) (°C)
-45 to 85
Temperature (storage) (°C)
-55 to 125
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace

Outline Drawing:
Ordering Information:
