ERZ-MPA-7500-8300-13

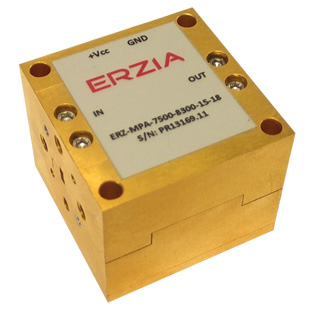

W Band Power Amplifier

Description:

The ERZ-HPA-7500-8300-15 is a W Band Amplifier providing up to 13 dBm and a gain over 18 dB. The compact size and modularity makes it ideal for a wide range of applications.

Key Features
Frequency Range (GHz):
75.00 to 83.0
Output Power (dBm):
13
Small Signal Gain (dB):
18
Bias:
Power supply: +12 V, DC Current: 133 mA
Package Dimensions:
30x30x24,5 mm
Connectors:
WR12 IN/OUT
Frequency Start (GHz)
75.00
Frequency Stop (GHz)
83.0
Output Power (dBm)
13
Gain (dB)
18
Gain flatness (dB)
±2
Noise Figure (dB)
-
VSWR IN
9.9:1
VSWR OUT
3.8:1
Power supply (V)
12 ±4
Current (mA)
133
Power consumption (W)
1.6
Max. Input DC (no damage) (V)
20
Max. RF input power (dBm)
4
Temperature (operation) (°C)
-35 to 70
Temperature (storage) (°C)
-45 to 85
Applications:

Industrial / Laboratory
Satcom / Telecom
Space / Aerospace
