Wideband Power Amplifier
Description:
The ERZ-HPA-0100-1800-37 is a wideband high power amplifier providing an output power of 36 dBm and a gain of 36 dB. The compact size and modularity makes it ideal for a wide range of applications.
Download:
| Frequency Start (GHz) | 1.00
|
|---|---|
| Frequency Stop (GHz) | 18.0
|
| Output Power (dBm) | 36
|
| Gain (dB) | 36
|
| Gain flatness (dB) | ± 4
|
| Noise Figure (dB) | 8
|
| VSWR IN | 1.5:1
|
| VSWR OUT | 2.0:1
|
| Power supply (V) | 24 ± 6
|
| Current (mA) | 1610
|
| Power consumption (W) | 40
|
| Max. Input DC (no damage) (V) | 32
|
| Max. RF input power (dBm) | 15
|
| Temperature (operation) (°C) | -45 to +85
|
| Temperature (storage) (°C) | -55 to +125
|
Applications:
Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military

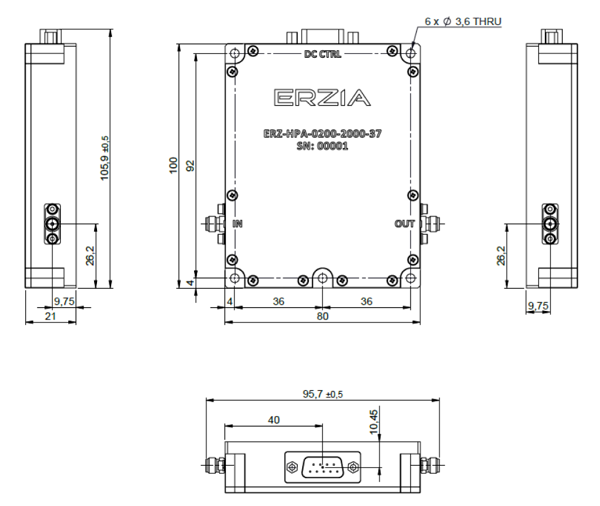

Outline Drawing:
Ordering Information:
